UPS
An uninterruptible power supply, also uninterruptible power source, (UPS) is an electrical apparatus that provides emergency power to a load when the input power source, typically mains power, fails. A UPS differs from an auxiliary or emergency power system or standby generator in that it will provide instantaneous or near-instantaneous protection from input power interruptions by means of one or more attached batteries and associated electronic circuitry for low power users, and or by means of diesel generators and flywheels for high power users. The on-battery runtime of most uninterruptible power sources is relatively short515 minutes being typical for smaller unitsbut sufficient to allow time to bring an auxiliary power source on line, or to properly shut down the protected equipment..
While not limited to protecting any particular type of equipment, a UPS is typically used to protect computers, data centers, telecommunication equipment or other electrical equipment where an unexpected power disruption could cause injuries, fatalities, serious business disruption or data loss. UPS units range in size from units designed to protect a single computer without a video monitor (around 200 VA rating) to large units powering entire data centers, buildings, or even cities.
ONLINE UPS
The online UPS is ideal for environments where electrical isolation is necessary or for equipment that is very sensitive to power fluctuations. Although once previously reserved for very large installations of 10 kW or more, advances in technology have now permitted it to be available as a common consumer device, supplying 500 watts or less. The initial cost of the online UPS may be slightly higher, but its total cost of ownership is generally lower due to longer battery life. The online UPS may be necessary when the power environment is "noisy", when utility power sags, outages and other anomalies are frequent, when protection of sensitive IT equipment loads is required, or when operation from an extended-run backup generator is necessary.
The basic technology of the online UPS is the same as in a standby or line-interactive UPS. However it typically costs much more, due to it having a much greater current AC-to-DC battery-charger/rectifier, and with the rectifier and inverter designed to run continuously with improved cooling systems. It is called a double-conversion UPS due to the rectifier directly driving the inverter, even when powered from normal AC current..
In an online UPS, the batteries are always connected to the inverter, so that no power transfer switches are necessary. When power loss occurs, the rectifier simply drops out of the circuit and the batteries keep the power steady and unchanged. When power is restored, the rectifier resumes carrying most of the load and begins charging the batteries, though the charging current may be limited to prevent the high-power rectifier from overheating the batteries and boiling off the electrolyte.
The main advantage to the on-line UPS is its ability to provide an electrical firewall between the incoming utility power and sensitive electronic equipment. While the standby and line-interactive UPS merely filter the input utility power, the double-conversion UPS provides a layer of insulation from power quality problems. It allows control of output voltage and frequency regardless of input voltage and frequency.
SERVO STABILIZER
A stabilizer is an electrical regulator designed to automatically maintain a constant voltage level. A stabilizer may be a simple "feed-forward" design or may include negative feedback control loops. It may use an electromechanical mechanism, or electronic components. Depending on the design, it may be used to regulate one or more AC or DC voltages.
Stabilizers are found in devices such as computer power supplies where they stabilize the DC voltages used by the processor and other elements. In an electric power distribution system, stabilizers may be installed at a substation or along distribution lines so that all customers receive steady voltage independent of how much power is drawn from the line.
Stabilizers are essential to safegaurd your electronic equipments against any variation in voltage level.

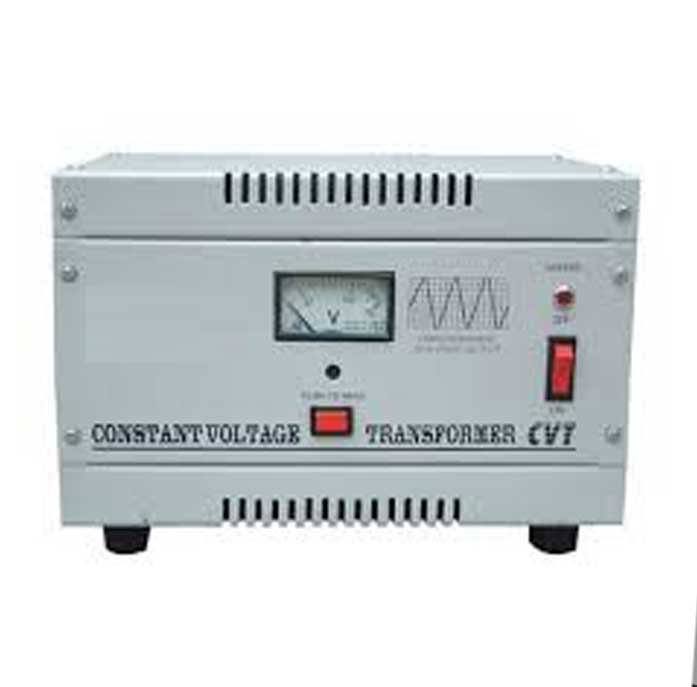

CVT's
The constant-voltage transformer (CVT's) is a type of saturating transformer used as a voltage regulator. These transformers use a tank circuit composed of a high-voltage resonant winding and a capacitor to produce a nearly constant average output voltage with a varying input current or varying load. The circuit has a primary on one side of a magnet shunt and the tuned circuit coil and secondary on the other side. The regulation is due to magnetic saturation in the section around the secondary.CVT's are also good surge suppressors, as they provide high isolation and inherent short-circuit protection. Minimum maintenance is required, as transformers and capacitors can be very reliable.
Invertors
An inverter is an electrical device that converts direct current (DC) to alternating current (AC); the converted AC can be at any required voltage and frequency with the use of appropriate transformers, switching, and control circuits. The electrical inverter is a high-power electronic oscillator.
Luminous offers a world class range of inverters and long backup UPS which have seen the light of the day only after going through extensive research and development worth million of dollars. Our undiluted focus on the dynamic power requirements of the customer has driven us to continuously innovate and come out with technologies which have become a benchmark for the whole industry and resulted in products offering great value to the consumer, no doubt we are the leaders in the domestic market and strive to be a prominent international player in the segment.
A.R.T Electronics has created a niche in this market due to its prompt delivery and uncomprimising attitude on quality. We specialise in standard specification and fixed dimensions according to the your specific requirements. Our experience in this area gives us the confidence to serve you better than others in the industry.
